Products
T8 Sensor LED Tubes

Products Introduction：

T8 150CM IR Sensor LED Tube
Model: SL-T8-150CM-120W-IR
Lighting Source:SMD2835
Chip Brand:Epistar
LEDs Quantity:120 PCS
Power Consumption: 22W
Input Voltage (Driver): 85~265V AC
Operation Temperature -40 ~ +70℃
Colors:Warm white CCT3000K,Natural white:CCT4000K,Cool white CCT6000K
Luminous:2100lm (±2%)
Products Features:

Feature:

1,Senser sensitivity:Sensor for infrared body induction

2,Sensing distance:4-6 meter

3, 30 seconds after the leave ,the brightness is reduced to 2% of original brightness or completely extinguished ,and can be customized according to customer demand.



Parameters:   Model number SL-T8-150CM-120W-IR


Item

 T8 led tube with IR sensor

LED Type

SMD2835

LED Quantity

120pcs

Power Consumption

22w

Input Voltage

AC85-265V,50/60HZ

Operating Current

20 mA

Color Temperature

Warm white(2700-3200k); Cool white(6000-6500k)

Luminou Flux

2100-2200LM

Color Rendering Index

> 76

Beam Angle

120°

Housing Material &Color

Aluminium base+ PC milky cover

LED Rated Life

50,000 hours

Operating Temperature

-20 ° C~ 40 ° C

Storage Temperature

-20 ° C ~ 60 ° C

Dimension

Φ26 *1514mm

Base Type

install slot/pin

Certification

CE,FCC,RoHS

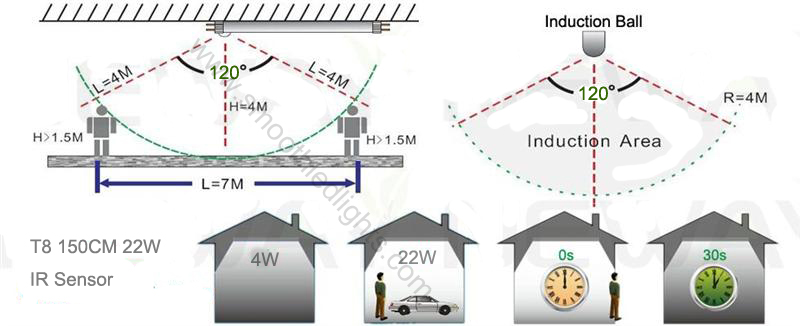

Sensor Parameter



Use mode

Detection distance

          Straight line 5-11m,

                                diameter8-12m When 3m height



Sensor angle

120degree



Delay time

                 30 seconds(adjustable)



Reaction speet

0.5second



Life span

50000HRS

H






Advantage:



1,Using 1/2 aluminum pipe structure,good appearance,good heat dissipating capacity.
2,Buit-in constant current driver,high efficiency,stability
3,Using the imported SMD as light source,high efficiency,long life span
4,Quick response time,the LED response time is nanosecond.
5,Environmental protection,no heavy metals and harmful gas
6,Energy-saving,Compare with traditonal fluorescent lights,it can save energy more than 80%.
7,No flicker,start quickly,soft light,protect your eyes
8,Easy to install and use




Application:

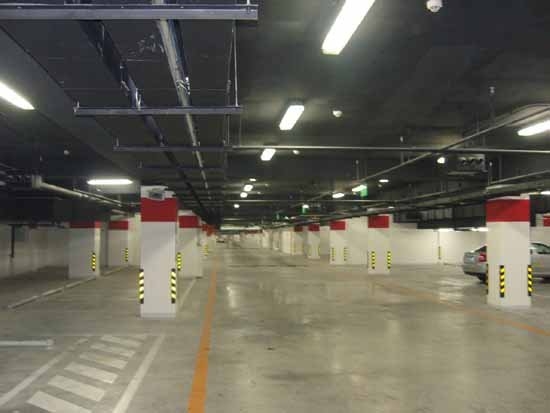

1. Shopping mall parking lots.
2. Factories, Offices,School,Universities,Hosptial
3. Conference,Meeting room,Show Room
4. Commercial Complexes
5. Super-markets
6. Residential,Institution building
