T8 Aluminum LED Tubes

Products Introduction:

T8 90CM 14W LED Tube
Model No: SL-T8-90CM
Power:14W
Dimension: 26x900mm
Lighting:Source SMD2835
LEDs Quantity:72 PCS
Working voltage:85~265V AC 50~60HZ
Available colors:Cool white,natural white and warm white
IP rate:IP44
Life span:50,000 hours
PF: ≥0.98
Operation Temperature -40 ~ +50℃
Products Features:

1. Single-end powered and LVD compliant,safe to touch the other end when installing

2. Integrated thermal management system conducts heat away from LEDs

3. Even and soft ambient light,confortable for the eyes

There are total 6 models available regarding T8 90CM LED Tubes,
the model with "F" means frosted cover
if no "F",it means cover will be clear,you can see the LED inside

Model No                       Dimensions    Wattage  Voltage  Lumens      CCT            Ra   Cover   Lighting Angle  Life Span
                                                (CM)               (W)          (V)         (LM)             (K)                                          (Degree)         (Hrs)

SL-T8-90CM-72CW-F      90*2.6              14       85~265   1470       5500~6000    80   Frosted         120              50,000

SL-T8-90CM-72NW-F      90*2.6              14       85~265   1400       4000~4500    80   Frosted         120              50,000

SL-T8-90CM-72WW-F      90*2.6              14       85~265   1330       4000~4500    80   Frosted         120              50,000

SL-T8-90CM-72CW
       90*2.6              14       85~265   1470       5500~6000    80      Clear           120              50,000


SL-T8-90CM-72NW          90*2.6              14       85~265   1400       4000~4500    80      Clear           120              50,000

SL-T8-90CM-72WW          90*2.6              14       85~265   1330       2800~3300    80      Clear           120              50,000

T8 90CM 14W LED Tube Dimensions:

T8 90CM 14W LED Tube Installations:

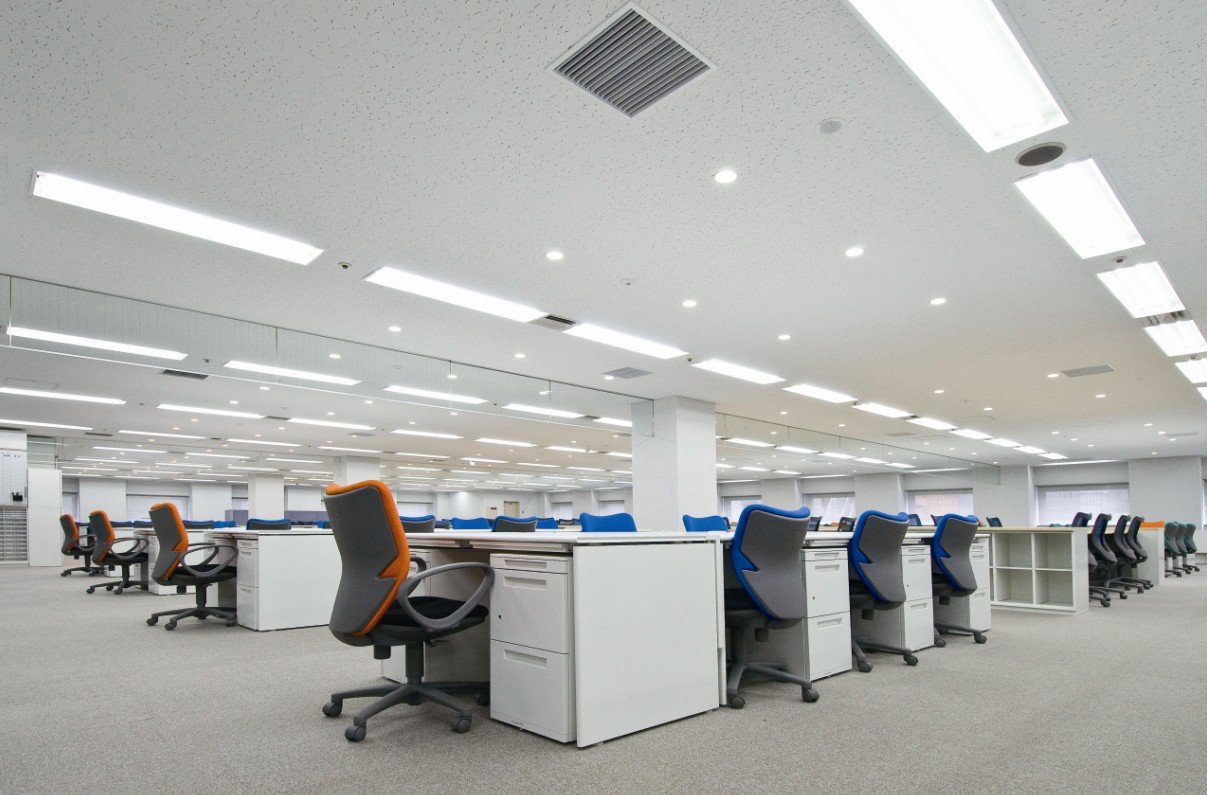

T8 90CM 14W LED Tube Applications:

Widely used in the hotel, meeting room, offices, hospital, schools, factories, commercial lighting, shopping malls, supermarkets, kitchen, display, backlight, home indoor lighting
