1.take high efficient constant current driving circuit for the SMD led tube,conversion efficiency >95%.
2.Separation circuit design,which meet CE/FCC/UL standard.
3.3000 hours lighting decay less than 1%.
4.Aluminum back cover and Aluminium PCB assure much better heat dissipatio,thus longer life span for the LED
5.Use high lumen output SMD 2835 LED,more than 24LM/LED

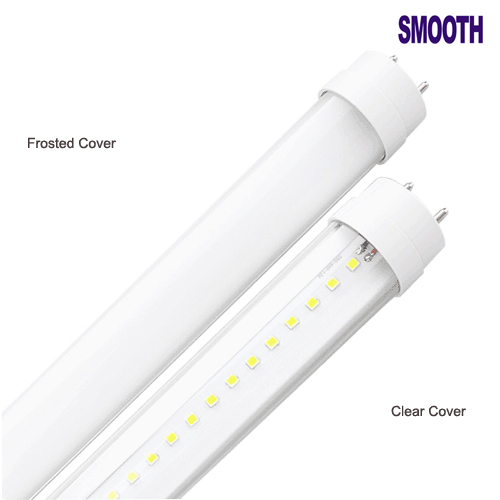

There are total 6 models available regarding T8 120CM LED Tubes,"F" means frosted cover,no "F" will be clear cover



Model No                       Dimensions    Wattage  Voltage  Lumens      CCT            Ra   Cover   Lighting Angle  Life Span
                                                (CM)               (W)          (V)         (LM)             (K)                                          (Degree)         (Hrs)

SL-T8-120CM-96CW-F    120*2.6           18         85~265   1850     5500~6000     80    Frosted         120              50,000

SL-T8-120CM-96NW-F    120*2.6           18         85~265    1800     4000~4500     80    Frosted         120              50,000

SL-T8-120CM-96WW-F    120*2.6          18         85~265    1710      2800~3300     80    Frosted         120             50,000

SL-T8-120CM-96CW        120*2.6           18         85~265    1850     5500~6000     80       Clear          120              50,000

SL-T8-120CM-96NW        120*2.6           18         85~265    1800     4000~4500     80       Clear          120              50,000

SL-T8-120CM-96WW        120*2.6           18         85~265    1710     2800~3300     80      Clear           120             50,000

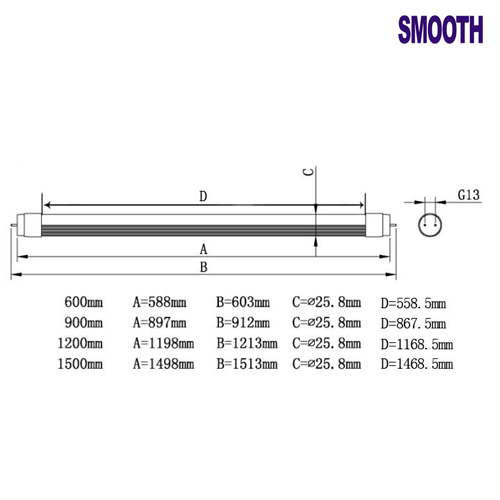

T8 120CM 18W LED tube light dimensions:

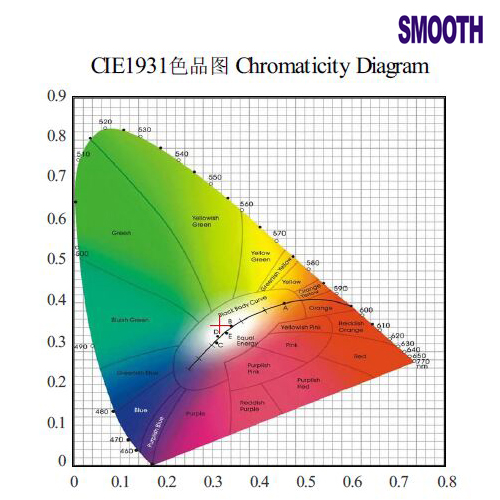

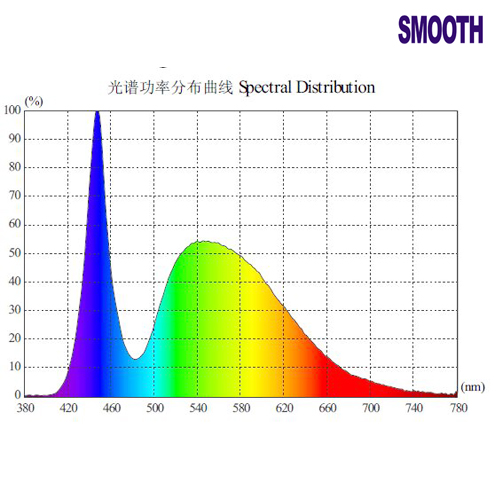

T8 120CM 18W LED tube light distribution diagram:

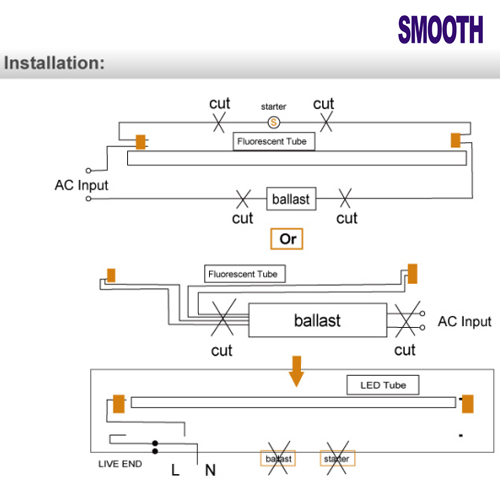

T8 120CM 18W LED tube light installation instructions:

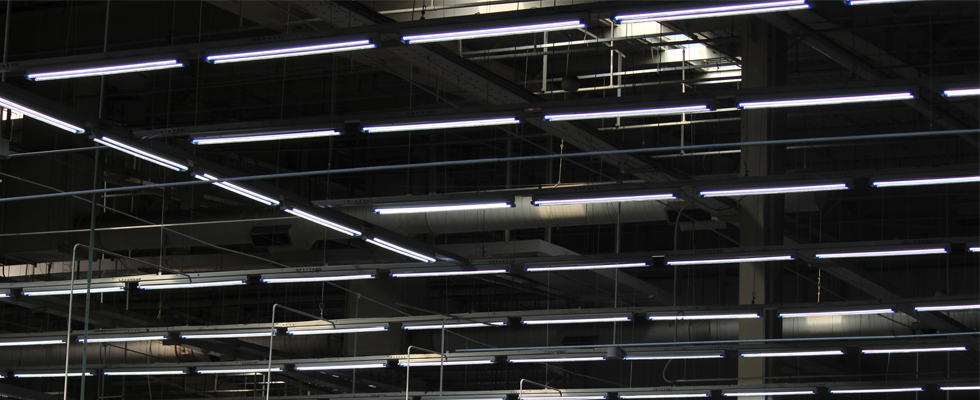

T8 120CM 18W LED tube light applciations:
office lighting
factory lighting
store lighting
shopping mall lighting
indoor lighting
home lighting
