Multi-Chip LED High Bay Lights

Products Introduction:

80W LED High Bay Lights
Model: SL-HB80W
Lighting Source:SMD
Chip Brand:Bridgelux/Epistar
LEDs Quantity:1 PC 80W
Power Consumption: 80W
Input Voltage (Driver): 85-265VAC /50-60HZ
Efficiency: ≥85%
PF: ≥0.92
Operation Temperature -40 ~ +50℃
Colors:Warm white CCT3000K,Natural white:CCT4000K,Cool white CCT6000K
Luminous: 8000lm (±5%)

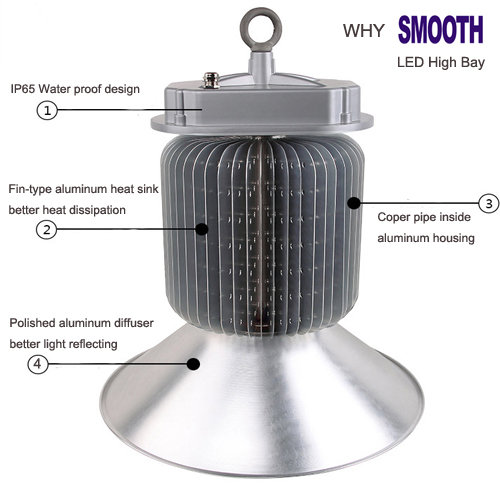

Products Features:

1. Mercury-free, lead-free and energy efficiency illuminant, environmental friendly lamp.

2. Over 30% energy consumption saved comparing to high pressure sodium lamp.

3. Fin-type aluminum housing+coper pipe heat dissipation

4. Anodized aluminum reflector keeps the even and efficient lighting effect,

   and coordinates with the radiator, effecting a cooling system to ensure safe performance for long-hour working request.

5. High power Led illuminant provides comfortable light without radiation, flicker or UV

Model No                    Dimensions    Wattage  Input Voltage  Initial Lumens      CCT                Ra       Diffuser            Life Span
                                             (CM)               (W)              (V)                    (LM)                  (K)                             (Degree)               (Hrs)

SL-HB80W-CW               28*23               80           85~265             8400             5500~6000         80      45/90/120              50,000

SL-HB80W-NW               28*23               80           85~265             8000             5500~6000         80      45/90/120              50,000

SL-HB80W-WW               28*23               80           85~265             7000             5500~6000         80      45/90/120              50,000

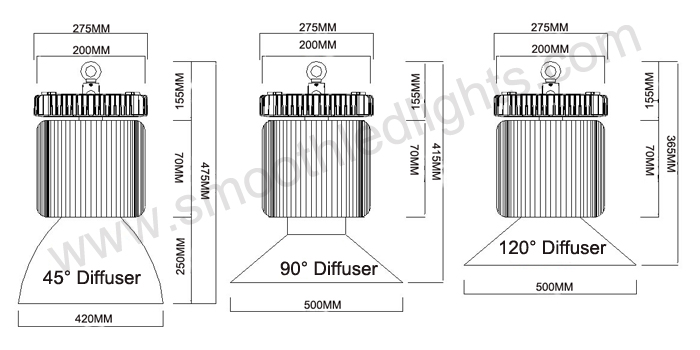

80W LED high bay dimensions:

80W LED high bayDiagram of degradation for Luminous






1The data above has been got at a temperature of 25 celsius degree and taking 1000 hours running by a nonstop way.


2Degradation of luminous flux of LED lamps depends on environmental conditions. The higher the temperature, the longer the using time, the faster luminous flux drops.


80W LED high bay Photomatric Data






80W LED high bayLumen Flux:

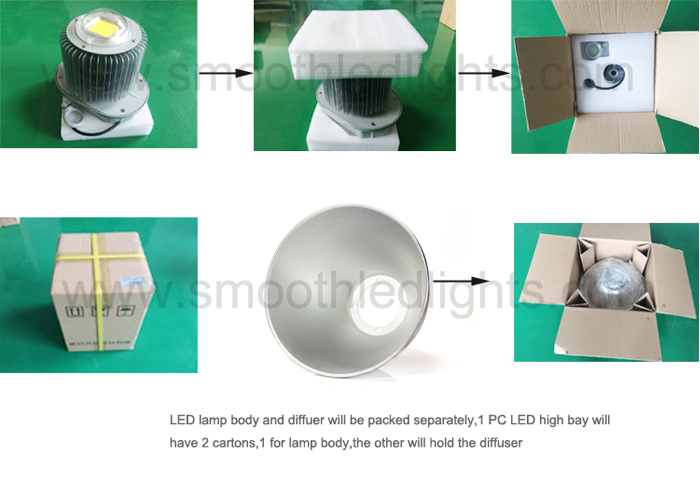

80W LED high bay packing details:

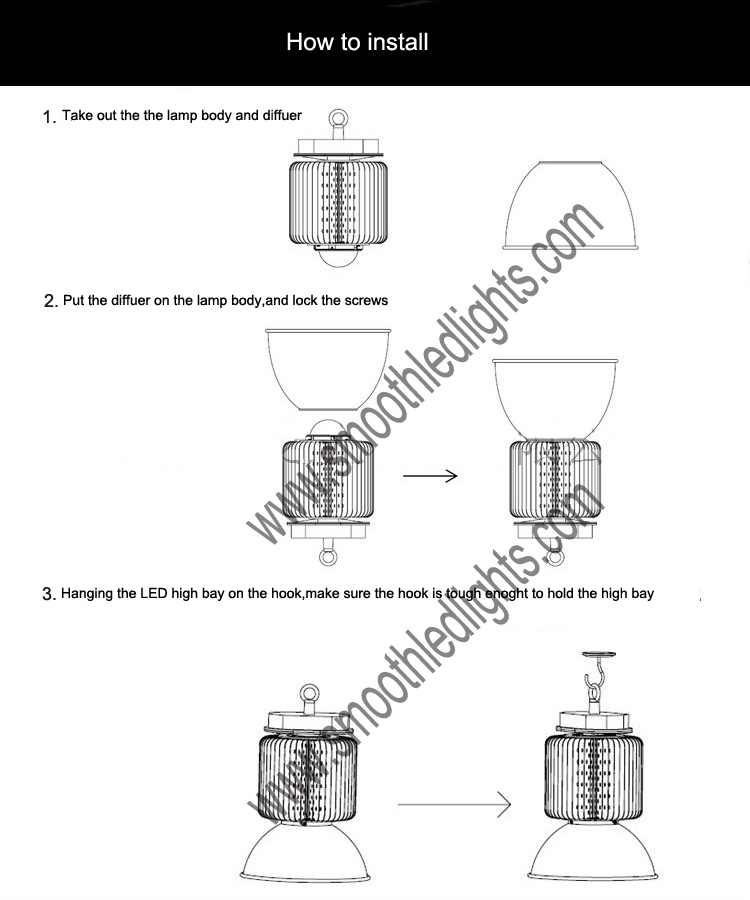

80W LED high bay Istalling instructions



80W LED high bay Application:

Workshop, Factory buildings, Warehouses, Highway toll station, Gas stations, Supermarket
