Multi-Chip LED High Bay Lights

Products Introduction:

150W LED High Bay Lights
Model: SL-HB150W
Lighting Source:SMD
Chip Brand:Bridgelux/Epistar
LEDs Quantity:1 PC 150W
Power Consumption: 150W
Input Voltage (Driver): 85-265VAC /50-60HZ
Efficiency: ≥85%
PF: ≥0.92
Operation Temperature -40 ~ +50℃
Colors:Warm white CCT3000K,Natural white:CCT4000K,Cool white CCT6000K
Luminous: 15000lm (±5%)
Products Features:

1. Mercury-free, lead-free and energy efficiency illuminant, environmental friendly lamp.

2. Over 30% energy consumption saved comparing to high pressure sodium lamp.

3. Fin-type aluminum housing+coper pipe heat dissipation

4. Anodized aluminum reflector keeps the even and efficient lighting effect,

   and coordinates with the radiator, effecting a cooling system to ensure safe performance for long-hour working request.

5. High power Led illuminant provides comfortable light without radiation, flicker or UV

Model No                    Dimensions    Wattage  Input Voltage  Initial Lumens      CCT                Ra       Diffuser            Life Span
                                             (CM)               (W)              (V)                    (LM)                  (K)                             (Degree)               (Hrs)

SL-HB150W-CW           28*38               150           85~265             16000         5500~6000         80      45/90/120              50,000

SL-HB150W-NW           28*38               150           85~265             15000         5500~6000         80      45/90/120              50,000

SL-HB150W-WW           28*38               150           85~265             14500         5500~6000         80      45/90/120              50,000

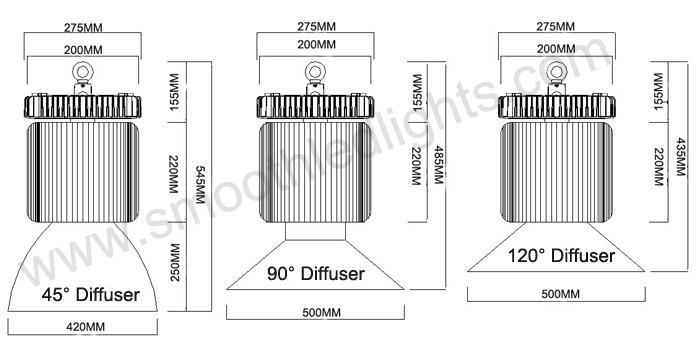

150W LED high bay lights Dimensions:



150W LED high bay  diffusers:



150W LED high bay Light Distribution:

 150W LED high bay Packing Information:




150W LED high bay Installation Instructions:

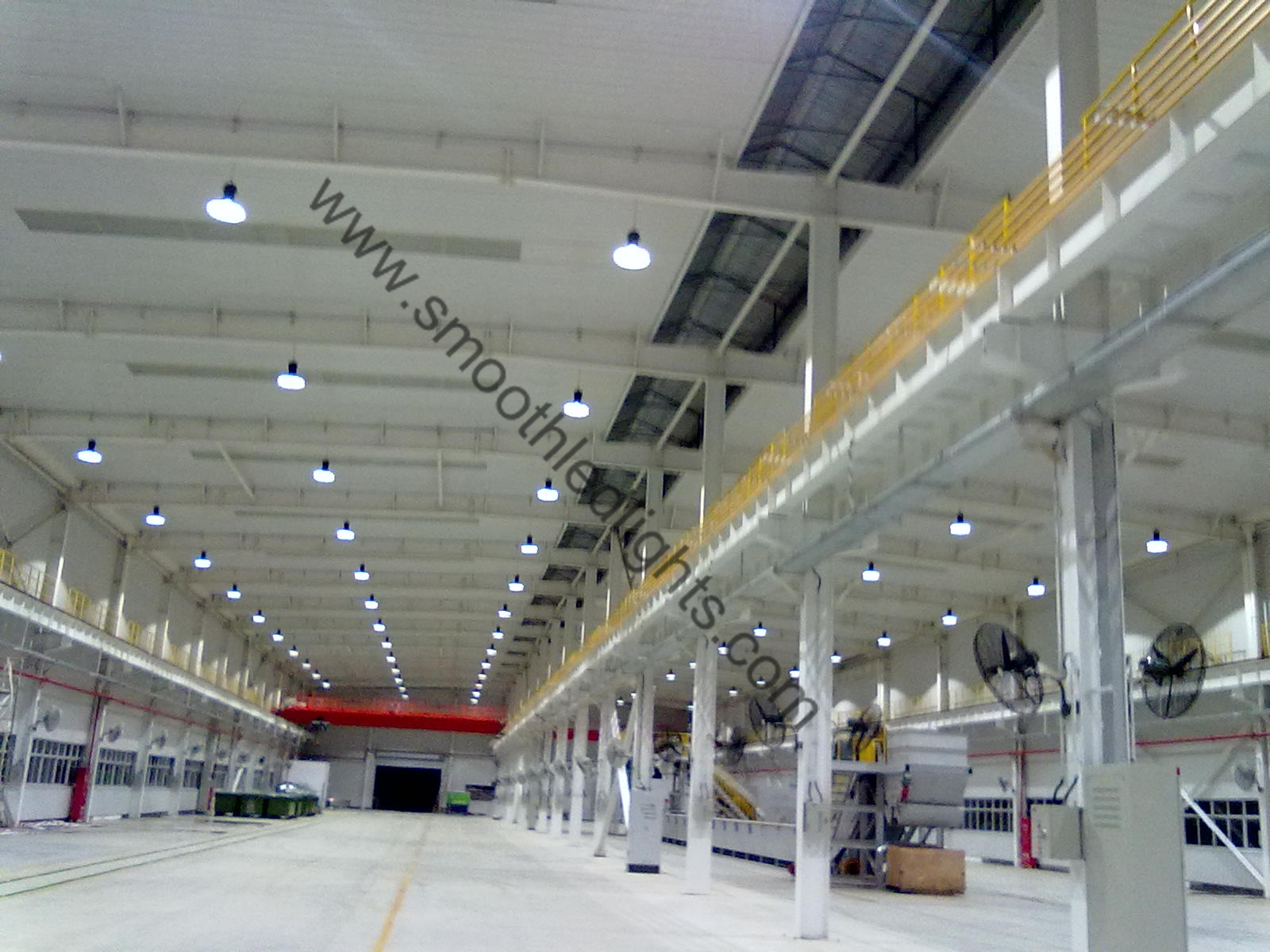

150W LED high bay APPLICATION:

1. Factory, workshop, especially non-glass workshop like food processing factory
2. warehouse, high-power needed
3. Super market
4. Studio
5. Storage place
6. Square
