Multi-Chip LED High Bay Lights

Products Introduction:

120W LED High Bay Lights
Model: SL-HB120W
Lighting Source:SMD
Chip Brand:Bridgelux/Epistar
LEDs Quantity:1 PC 120W
Power Consumption: 120W
Input Voltage (Driver): 85-265VAC /50-60HZ
Efficiency: ≥85%
PF: ≥0.92
Operation Temperature -40 ~ +50℃
Colors:Warm white CCT3000K,Natural white:CCT4000K,Cool white CCT6000K
Luminous: 12000lm (±5%)
Products Features:

1. Mercury-free, lead-free and energy efficiency illuminant, environmental friendly lamp.

2. Over 30% energy consumption saved comparing to high pressure sodium lamp.

3. Fin-type aluminum housing+coper pipe heat dissipation

4. Anodized aluminum reflector keeps the even and efficient lighting effect,

   and coordinates with the radiator, effecting a cooling system to ensure safe performance for long-hour working request.

5. High power Led illuminant provides comfortable light without radiation, flicker or UV

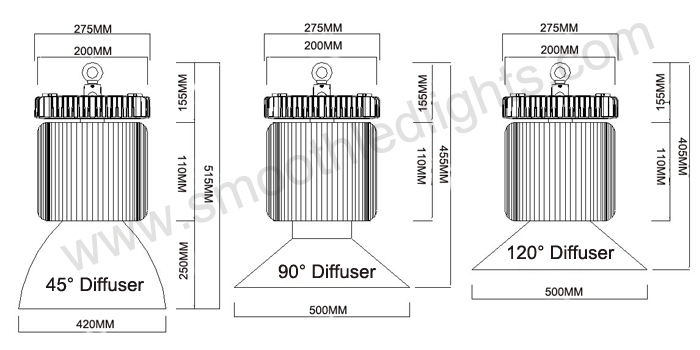

120W LED high bay Dimensions:

120W LED high bay Photomatric Data


120W LED high bay Lux Test:




120W LED high bay Packing details:

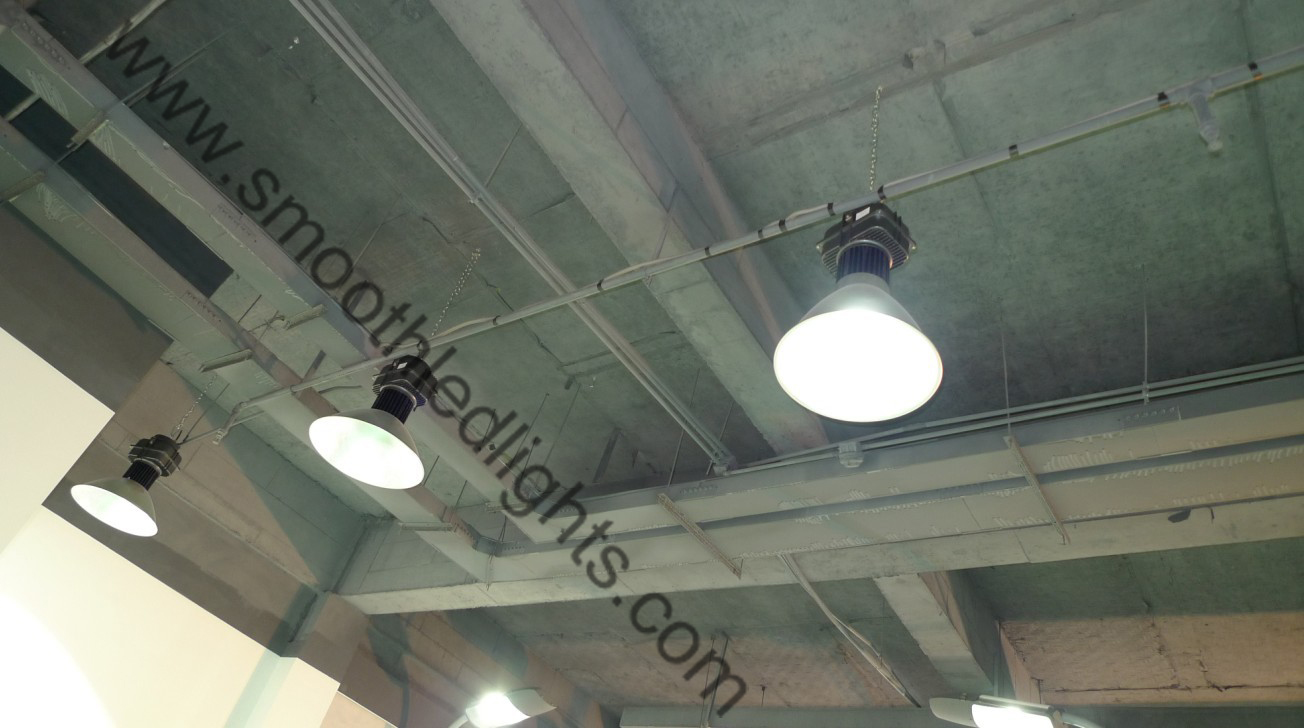

120W LED high bay installations:

120W LED high bay  Application
It is suitable for workshop, factory building,storeroom,toll gate, gas station, large supermarket,exhibition hall, and gymnasium ect
