The main parameters:
Input voltage: AC85-265V, 47-63Hz
LED chip pieces: 4x (60 x 1W) (integrated package)
Total system power: 240 ± 2W
Power efficiency:> 95%
Harmonic distortion (THD): <10%
Power factor (PF):> 0.95
LED luminous efficiency:> 100 lm / w
LED initial flux:> 24000 lm
LED operating voltage :30-34V
White color temperature (CCT): Cool white :5500-6000K is white: 4000 - 4500K daylight, Warm White: 2800 - 3300K.
As defined in LUX standard color temperature: 3500 ± 200K, 4000 ± 250K, 4500 ± 250K, 5000 ± 300K, 9200 ± 350K, 6500 ± 500K
Other optional LED colors: red, yellow, blue, green, amber
Color rendering (CRI): Cool White / White Ra ≥ 80; warm white Ra ≥ 70
Way of the light distribution: LED + pure aluminum reflectors secondary light distribution
Light distribution curve: symmetric / rectangular beam
Protection degree: IP65
Operating Temperature: -40 º C ~ 50 º C
Operating humidity: -10 ~ 90% RH
Storage Temperature: -25 º C ~ 65 º C
Lamp body material: high purity die casting aluminum alloy, the thermal profiles + pure aluminum reflector + super-strength tempered glass
Light body shell color: black conventional Optional other colors made to order.
LED light source service life:> 50,000 hours
Product weight (N.W): 18.6Kgs

240 watts LED tunnel lights Product Size Figure:

240 watts LED tunnel lights light intensity distribution curve:

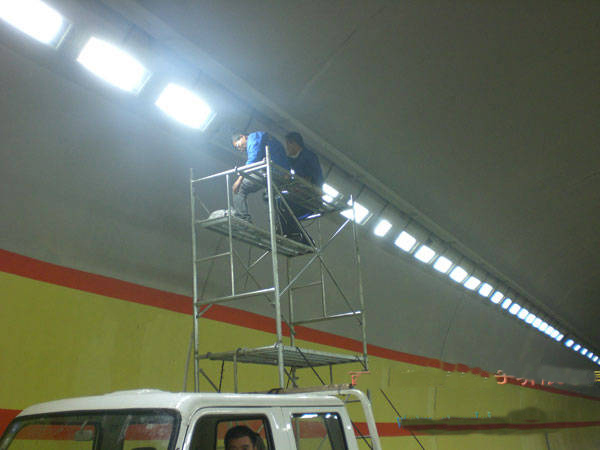

240W LED Tunnel Lights Applications:Tunnel Lighitng,road lighting,speed road lighting
