Products Introduction：

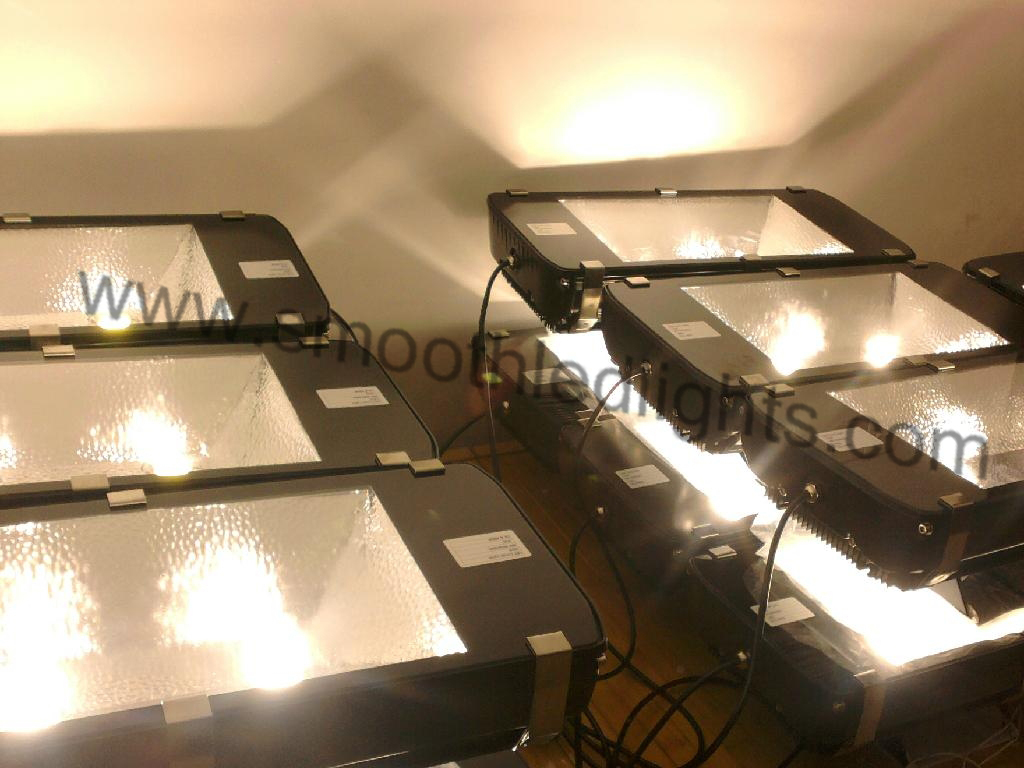

120W LED Tunnel Lights
Model: SL-TL120W-A
Lighting Source:Multi-Chip 2X60W
Chip Brand:Epistar/Bridgelux
LEDs Quantity:2 PCS
Power Consumption: 120W
Input Voltage (Driver): 85~265V AC
Operation Temperature -40 ~ +70℃
Colors:Warm white CCT3000K,Natural white:CCT4000K,Cool white CCT6000K
Luminous:12000lm (±2%)
Products Features:
Product Details:
Number of LEDs (pcs): 2pcs high power 60W multi-chip LED
LED Light Source:Bridgelux LEDs/Epistar LEDs
Body Color: Black,Silver Optional
Total power consumption of LEDs (W):120W
Color temperature (K):cool white 5500-6000K,natural white CCT4000~4500K and warm white CCT2800~3300K
Luminous flux (Lm):100lm/W
Beam angle (degree):>120degree
Color rendering index (CRI) : >75
Rated voltage (V AC/V DC): AC85-265V
Operating Current:DC2.7-3.2A
Frequency range (Hz): 50-60Hz
Working environment: outdoor,IP65 water proof designed
Body temperature: less than 65 Celsius,good heat dissipation condition
Material of body: aluminum alloy back and clear/wave cover
IP rating: IP65
Operating temperature: -40~70 degrees Celsius
Replace traditional Bulb:600W
Dimensions: 590*285*215mm
Net Weight:12.35Kg
Life span: 50,000hours
Certificate:CE  ROHs
Warranty (years): 3 years

120W LED tunnel lights Package:






120W LED Tunnel lights light curve:



besides tunnel lighting,120W LED tunnel lights widely used for Squares,hotels,tall buildings,stages,side road etc.
