LED High Pole Lights
You are here: Home >> Products >> LED High Pole Lights

Products Introduction:

100W LED High Pole Lights
Model: SL-HP100W
Lighting Source:Multi-Chip 2X50W
Chip Brand:Epistar/Bridgelux
LEDs Quantity:2 PCS
Power Consumption: 100W
Input Voltage (Driver): 85~265V AC
Operation Temperature -40 ~ +70℃
Colors:Warm white CCT3000K,Natural white:CCT4000K,Cool white CCT6000K
Luminous:10000lm (±2%)
Products Features:
New 100W LED Flood Lights use new unique designed aluminum housing,by using 2 pcs Bridgelux 50W LEDs,lumens can be more than 11000LM.
Meanwell driver will make 100W LED flood lights more steady
Product Details:
Number of LEDs (pcs): 2pcs high power ceramic multi-chip LED 50W
LED Light Source:Bridgelux LED/Epistar LED
Body Color: Black
Total power consumption of LEDs (W):100W
Color temperature (K):5500-6000K/4000-4500K/2800-3300K
Luminous flux (Lm):110lm/W
Color: White/Natural White/Warm white
Beam angle (degree):>120degree
Color rendering index (CRI) : >75
Rated voltage (V AC/V DC): AC85-265V
Operating Current:DC3-3.5A
Frequency range (Hz): 50-60Hz
Working environment: Outdoor
Body temperature: less than 65 Celsius
Material of body: aluminum alloy back and clear/wave cover
IP rating: IP65
Operating temperature: -40~70 degrees Celsius
Replace traditional Bulb:600W
Dimensions: 309*250*192mm
Net Weight:5.5Kg
Life span: 50,000hours
Certificate:CE  ROHs
Warranty (years): 5 years

Product Features:

1)Applied wide voltage:AC85-265V,AC 277-300V.

2)With constant current constant voltage control circuit.

3)Overcome the light instability&noise,because of using the ballast.

4)Special design for heat sinking,ensuring safe working temperature and long life.

5)True color rendering with optional light colors.

6)High light transmission with the use of lends.

7)Life span:>50,000hrs.

8)Certificate: CE&RoHS&FCC&ISO;(UL with power supply).

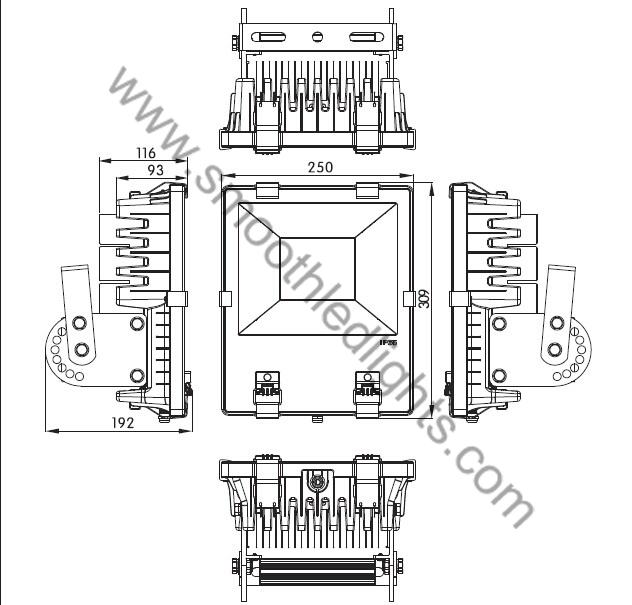

Size:



Light distribution:



1.Application:

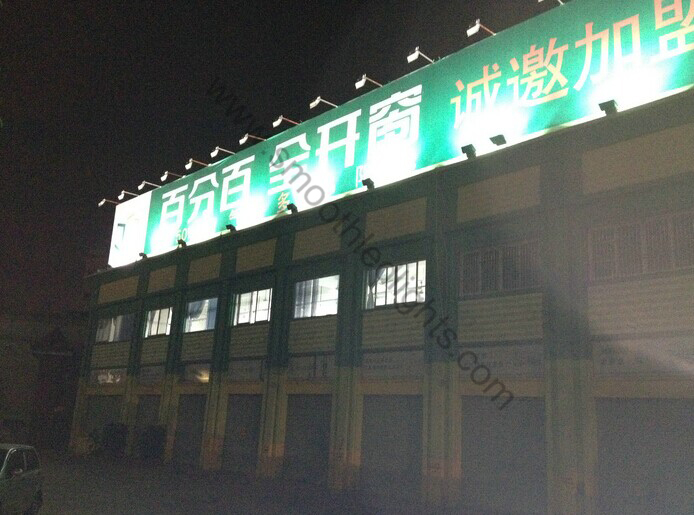

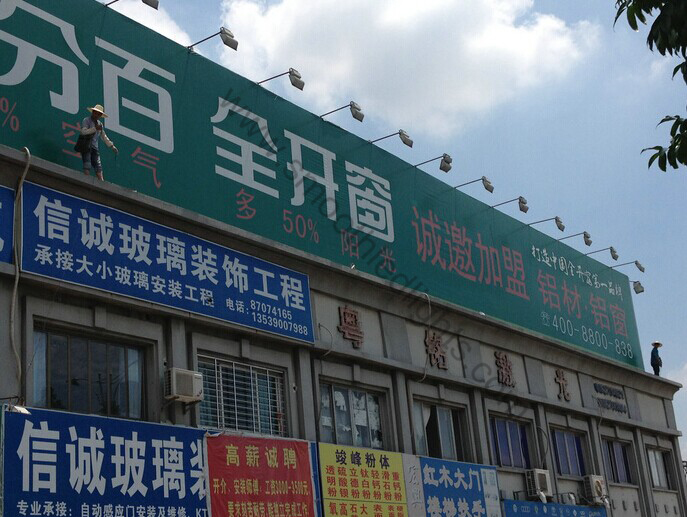

Factory, stadium, dock, garden, plaza, billboards, buildings, lawn garden design cast light and decorative lighting place
