Products
Copper Pipe LED High Bay Lights

Products Introduction：

80 Watts Copper LED High Bay Lights
Lighting Source:Multi-Chip LEDs
Chip Brand:Bridgelux
LEDs Quantity:1 PC 80W
Power Consumption: 80W
Input Voltage (Driver): 85-265VAC /50-60HZ
Efficiency: ≥85%
PF: ≥0.92
Operation Temperature -40 ~ +50℃
Colors:Warm white CCT3000K,Natural white:CCT4000K,Cool white CCT6000K
Luminous: 8000lm (±5%)
Products Features:
SMOOTH 80W cooper piper LED high bay use patent copper pipe+aluminum housing for heat
dissipation,long life span more than 50000 hours
3 different diffusers available-45 degree,90 degree and 120 degree

Model No                    Dimensions    Wattage  Input Voltage  Initial Lumens      CCT                Ra       Diffuser            Life Span
                                             (CM)               (W)              (V)                    (LM)                  (K)                             (Degree)               (Hrs)

SL-HB80W-CWC           18*40               80             85~265              8000           5500~6000        80      45/90/120              50,000

SL-HB80W-NWC           18*40               80             85~265              7600           4000~4500        80      45/90/120              50,000

SL-HB80W-NWC           18*40               80             85~265              7200           2800~3300        80      45/90/120              50,000

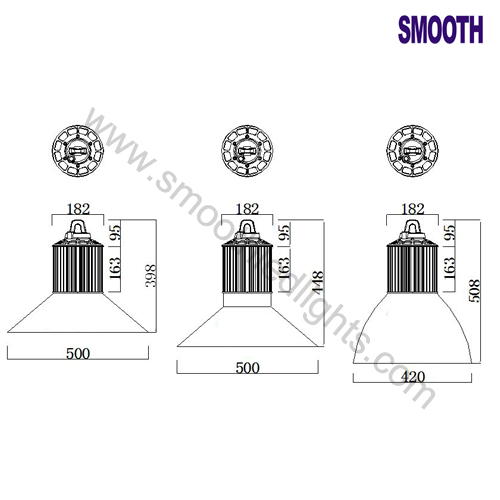

80W Copper LED high bay dimensions:


Copper Pipe&Aluminum Housing

80W Copper Pipe LED high bay Photomatric Data

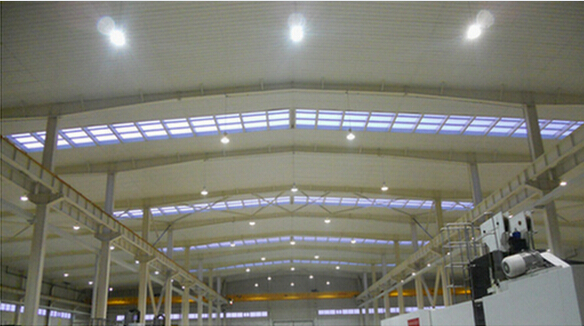

80W Copper LED high bay applications:warehouse,factory etc
